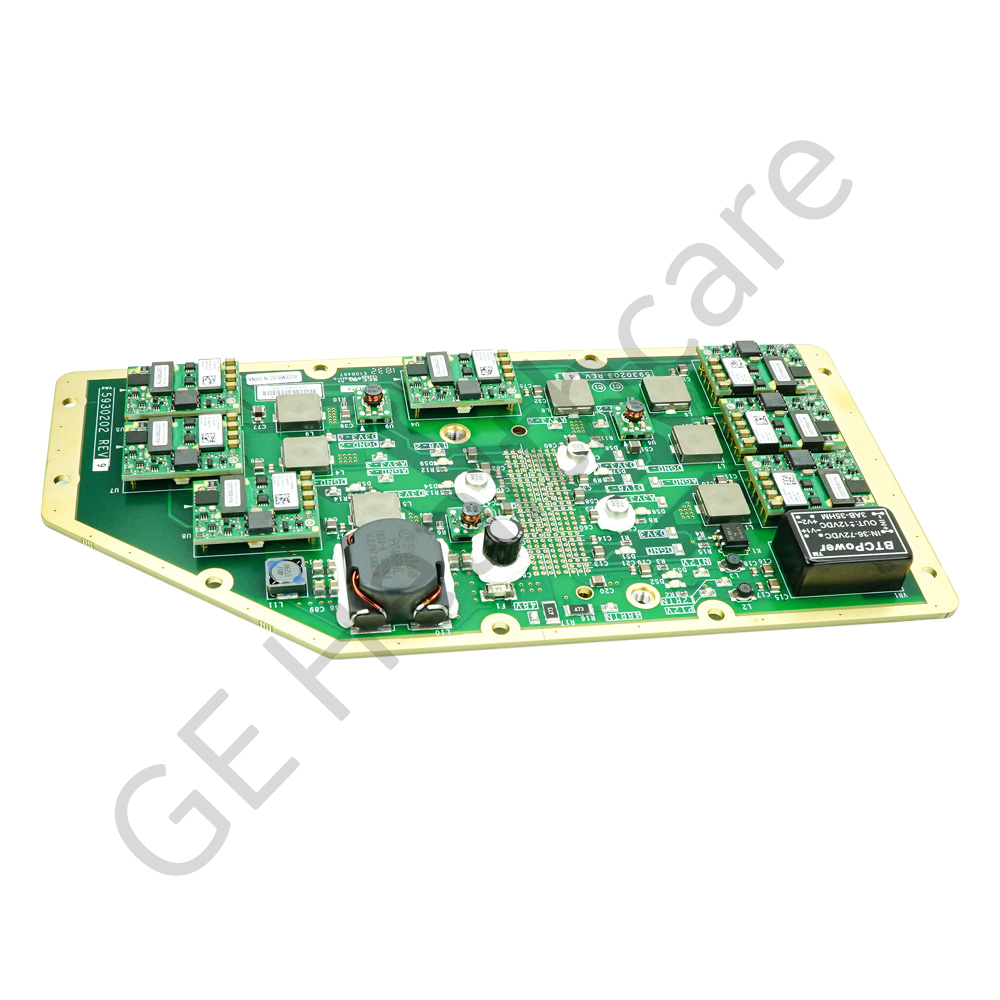

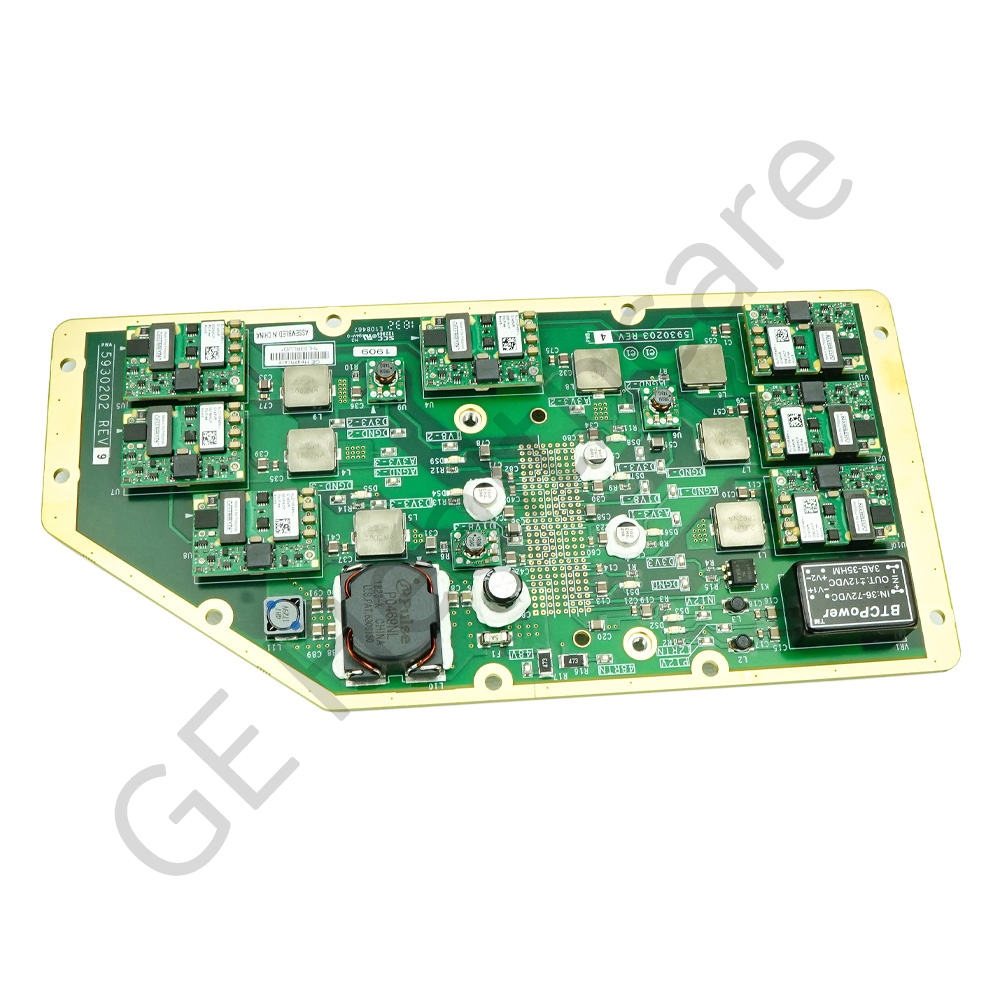

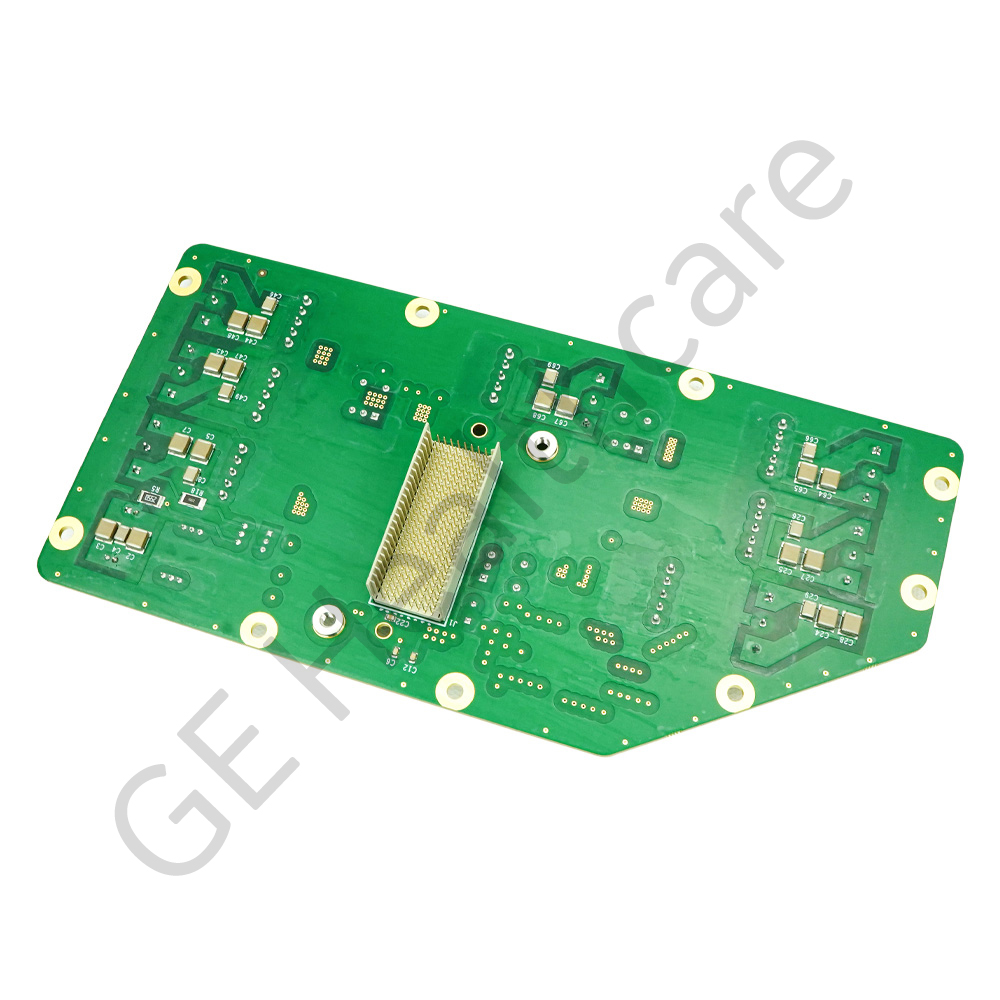

Vyper DAS Power Board Assembly
| 5930202 | |
| Computed Tomography (CT) | |
| GE HealthCare | Exchange - Return Defective |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Multiple output Board
- Fuse Protected
- Easy to Connect and Disconnect
- Compact design
Product Overview
This is a low voltage power supply board which converts DC input voltage into required lower DC voltages. This board is powered with 48 VDC input and provides +12 VDC, -12 VDC, 1.8 VDC and 3.3 VDC outputs. These outputs are used to power various sections of the VDAS DOD16 and DAS DOD57 assembly. The circuit board comes with a 5A/125 V time delay fuse for short circuit protection and LED indicators are provided for all 3.3V, +12 V and -12 V outputs. This power board is is made up of FR-4 Glass fiber, a composite material that consists of glass fabric, electrical grade epoxy resin. This power board can be used with Brivo 385 and Optima 520 systems.
