Features
- Electromagnetic Brake
- Free from backlash and wear
- Wide operating temperature range
- Compact Design
Product Overview

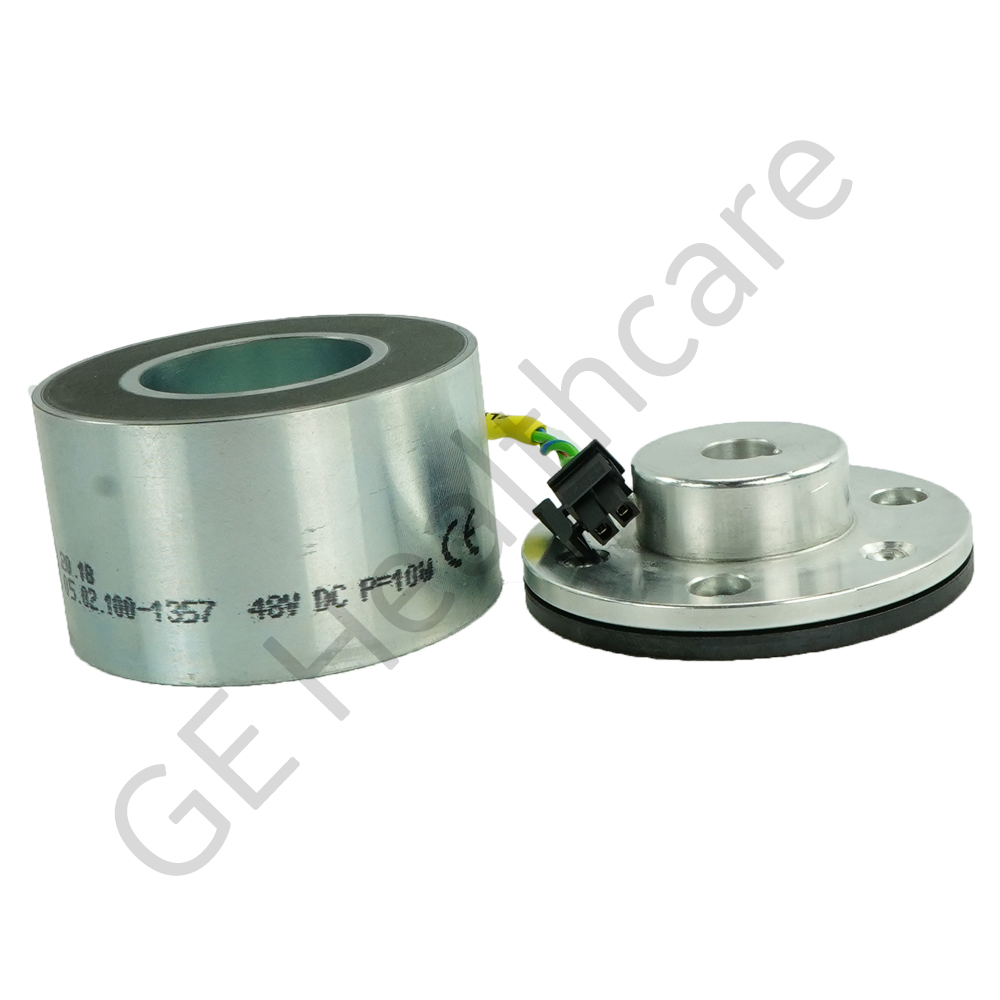

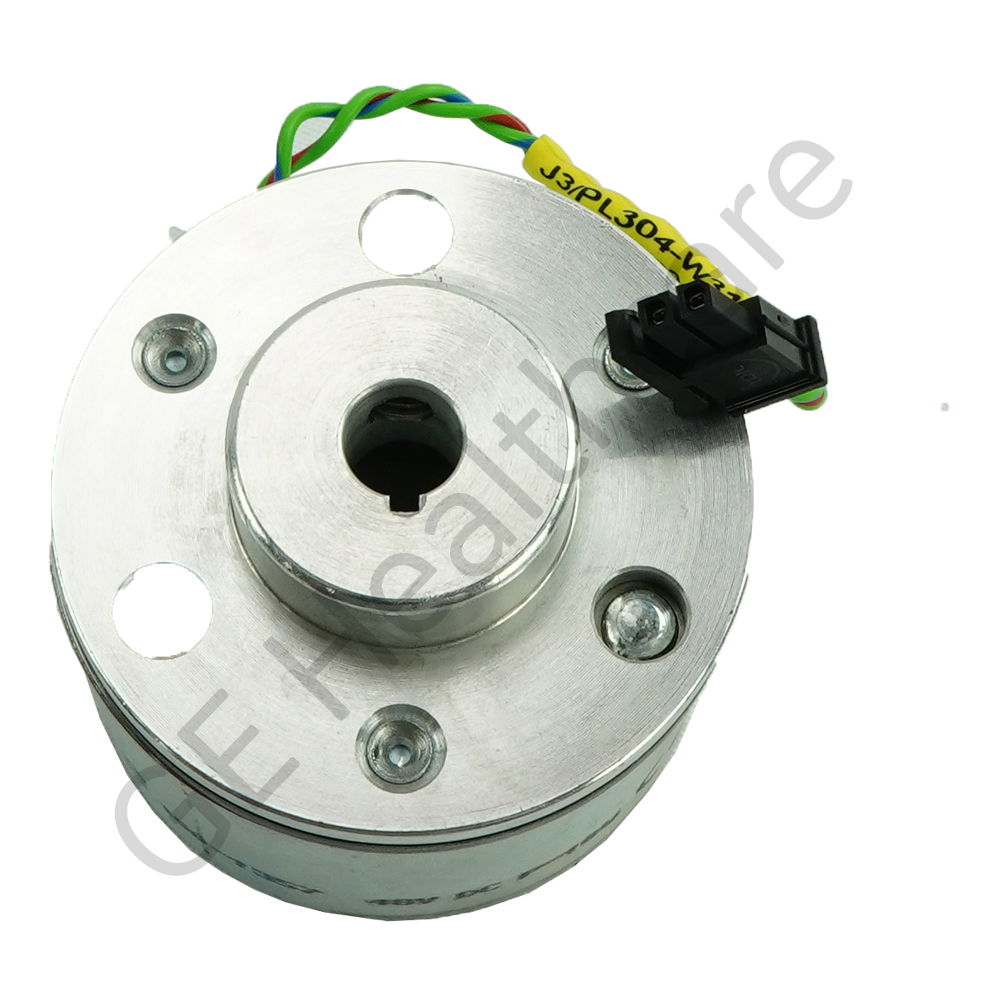

This Electromagnetic brake is used in the paddle holder trolley assembly of Tetris Compression System which is a part of mammography systems. This current operated brake use the flux of an electromagnet, concentrated on two pole surfaces, for the separating or holding of shafts and the connected loads. When we provide current supply to the brake, the coil produces a strong electromagnetic force which attracts the armature disk strongly against the friction lining on the brake housing. The driving or braking torque is transmitted through a flat steel spring without any wear or backlash. When the current is switched off the armature disk comes back to its normal position for the next operation. This Brake requires 48 VDC voltage for its operation. This brake comes with a 100 mm long cable having two-position connector for connecting the brake to the paddle holder trolley assembly. This Electromagnetic Brake is compatible for use in the GE's Seno Advantage, Senographe Essential, Senographe Essential E Mammography Systems.
Compatible Products
Seno Advantage
Senographe Essential
